如下為我司愛澤工業IZE_Industries本月到貨SEW配件相關產品，歡迎致電索取樣本資料和產品信息。

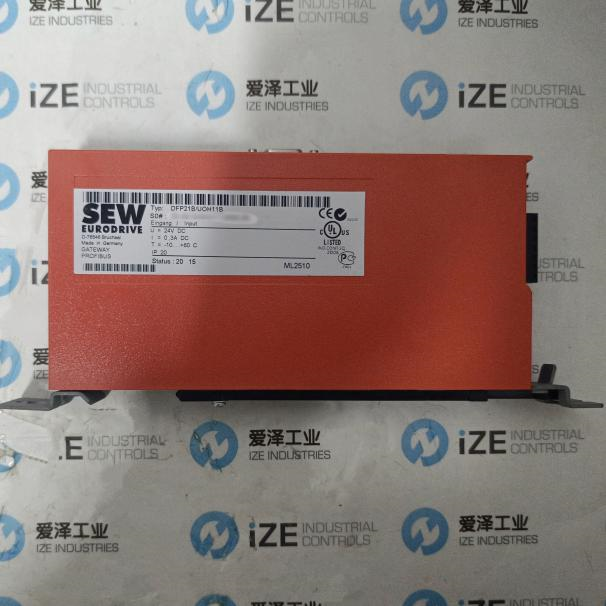

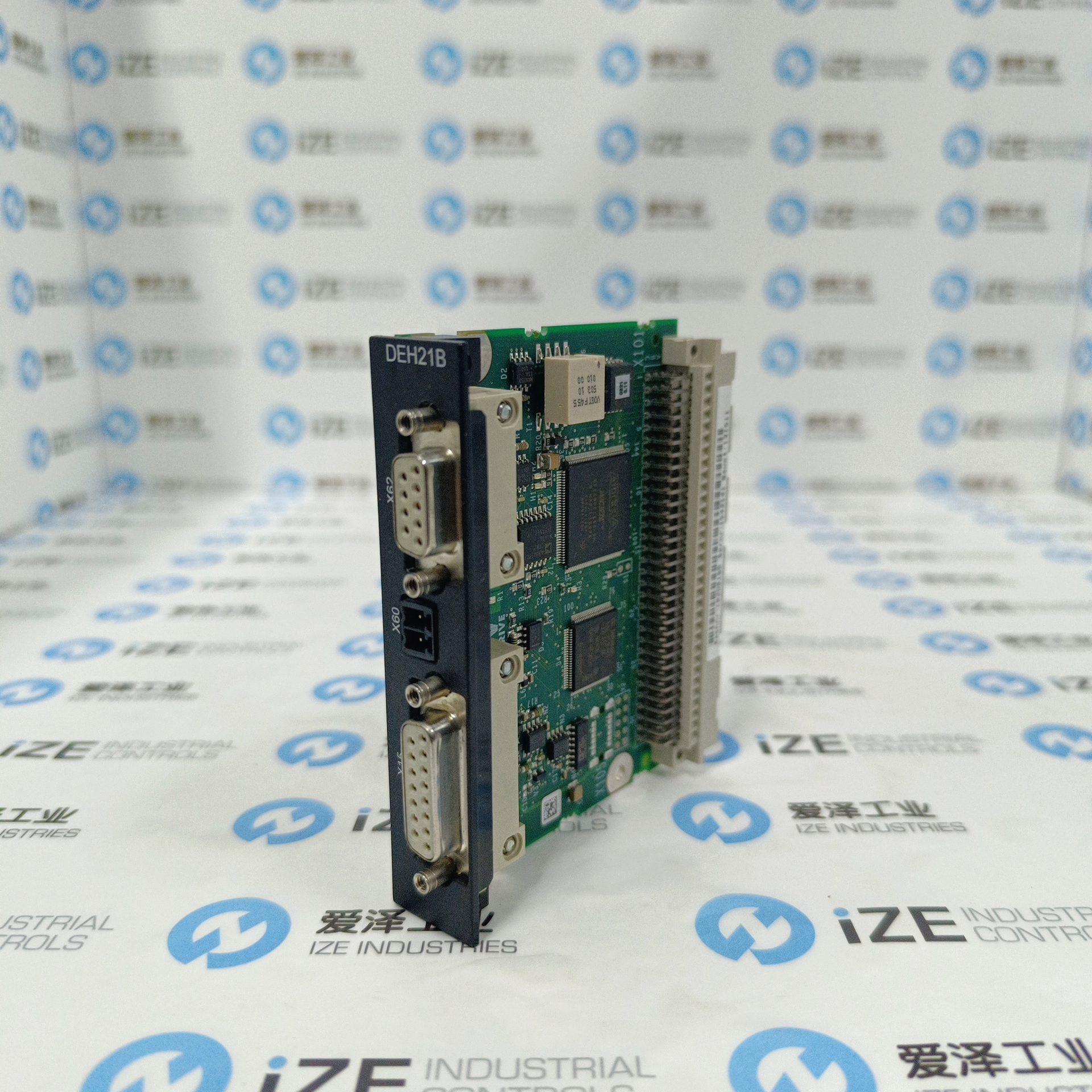

SEW模塊DEH21B SEW通訊模塊DFP21B/UOH11B

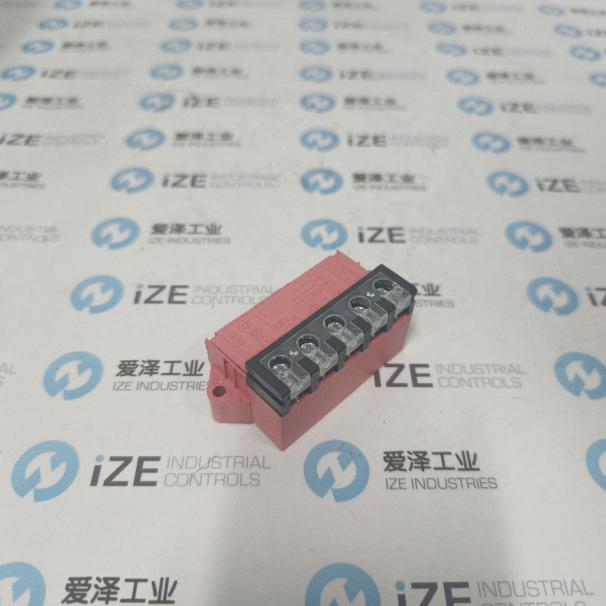

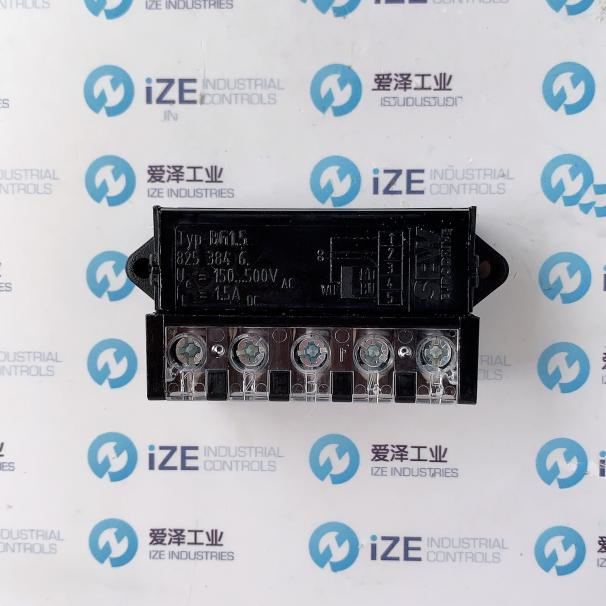

SEW整流器BGE1.5 8253854 SEW整流器BG1.5 8253846

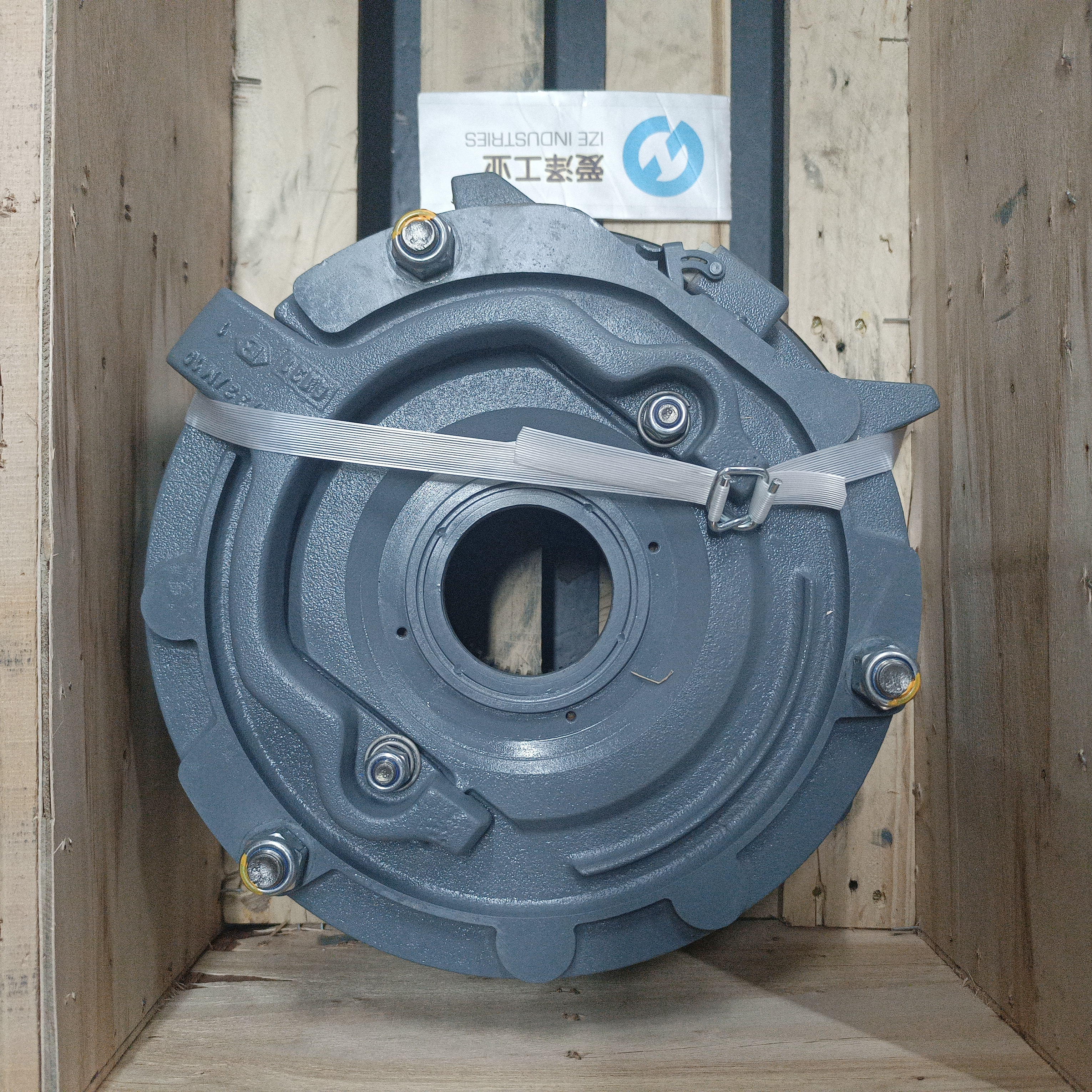

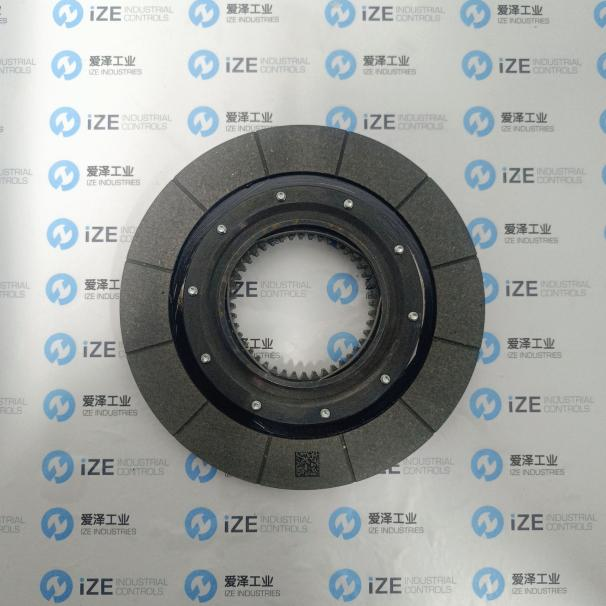

SEW剎車BMG122 SEW剎車片BE3032

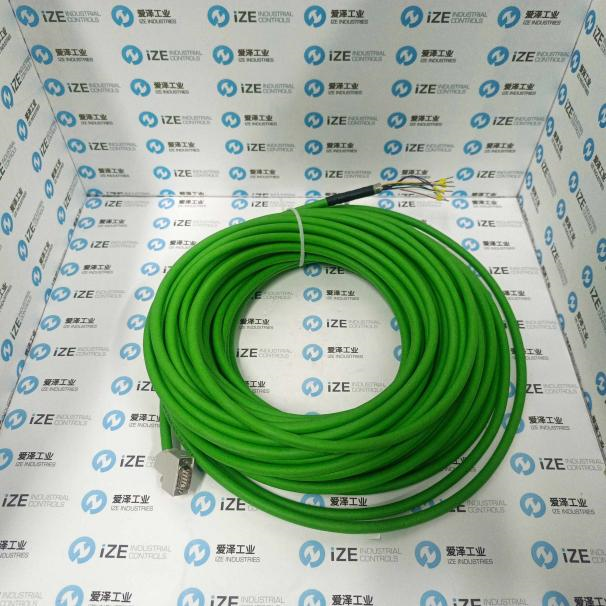

SEW驅動器面板DBG60B-10 SEW線纜01995901
SEW油封W BASF55X90X10-NBR SEW油封W BASF50X65X10-NBR
SEW電機用風扇葉RIMSS2 SEW電機罩
SEW整流器BG系列介紹
BG制動整流器 - 適用于100及以下機架尺寸，不適用于100以上機架尺寸
BG制動整流器是一款半波整流器，具有過壓保護功能。
如果對制動器的釋放響應時間沒有特殊要求，則該整流器適用于小型電機。它不能在環境溫度較高或制動器冷卻條件不利的情況下使用。
The BG Brake Rectifier - Standard for frame sizes up to 100, not available on frame sizes above 100
The brake rectifier BG is a half-wave rectifier with overvoltage protection.
This rectifier is used on small motors if no special requirements are needed with respect to the release reaction times of the brake. It cannot be used at elevated ambient temperatures or with unfavorable cooling conditions for the brake.
SEW整流器BGE系列介紹
BGE制動整流器 - 112M及以上機架尺寸電機標配，71至100機架尺寸可選配
BGE制動整流器是一款半波整流器，帶有過壓保護元件和電子控制裝置，可縮短制動器釋放響應時間。
BGE整流器通過以下方式改進制動器運行：首先利用磁化釋放制動器，然后通過降低磁化強度牢固地保持靜止盤片。由于制動器釋放響應時間極短，制動器在電機建立扭矩并開始旋轉之前即可釋放。該制動系統具有磨損極小、使用壽命長、開關性能優異等顯著特點。
在持續釋放狀態下，電流損耗降下降，因此制動器的熱負荷非常低。
建議在以下情況下使用BGE制動整流器：
·需要較短的制動器釋放響應時間。
·啟動頻率較高。
·環境溫度較高，或者當電機靜止或低速運轉時，需要保持制動器持續釋放狀態。
The BGE Brake Rectifier - Standard for motor frame sizes 112M and larger, optional on frame sizes 71 to 100
The BGE brake rectifier is a half-wave rectifier with over-voltage protection elements and electronic control for reducing the brake release reaction times.
The brake operation is improved by the BGE rectifier in that it releases the brake initially by super-magnetization and then holds the stationary disc securely with reduced magnetization. Due to the exceedingly reduced brake release reaction time ti the brake is released before the motor can build up torque and begin to rotate. Minimum wear with maximum service life and excellent switching ability are the outstanding features of the brake system.
In the continuous released state the current losses are reduced to the necessary minimum so the thermal loading of the brake is very low.
The use of the BGE Brake Rectifier is recommended if:
·Short brake release reaction times are required.
·High starting frequencies are encountered.
·High ambient temperature is present or the brake is required to be in the continuous released state while the motor is at rest or operating at low speeds
SEW剎車盤BM, BMG和 BE系列介紹
SEW 的制動系統滿足嚴格的設計標準，從需要簡單保持制動器的電子應用到需要高動態性和精確定位的機械應用，均可適用。
DT/DV 電機可安裝 BM 和 BMG 制動器；DR 電機可安裝 BE 制動器。
• 低制動電機慣性可一定限度地提高位置精度和占空比。
• 快速釋放可更大限度地延長剎車片壽命并減少剎車片磨損
• 多種彈簧組合可提供多種制動扭矩選擇
• 對敏感電子設備的無線電干擾低
• 阻尼板可降低噪音和降低聲級（dB）
• 低能耗保持線圈，功耗極低
• 發熱量極低，可在較高的環境溫度下運行
• 直流線圈能夠承受交流電源的電流波動，而不會產生惱人的制動“咔嗒"聲
• 低維護成本
• 袖珍的
SEW’s patented brake system meets rigid design criteria ranging from electronic applications that require a simple holding brake to mechanical applications that require high dynamics and accurate positioning.
DT/DV motors accept the BM and BMG brakes; DR motors accept the BE brake.
• Low brakemotor inertia maximizes position accuracy and duty cycle.
• Fast release maximizes brake life and reduces brake lining wear
• Multiple spring combinations provide several choices for brake torque
• Low radio interference with sensitive electronic equipment
• Patented damping plate provides reduced noise and low sound level (dB)
• Patented low energy holding coil consumes minimal power
• Minimal heat generation permits operation in higher ambient temperatures
• DC coil tolerates current fluctuations from the AC supply without nuisance brake “clacking"
• Low maintenance
• Compact
SEW油封介紹
油封用于密封旋轉軸，既能保護齒輪箱免受外部灰塵污染，又能防止潤滑油泄漏污染生產環境。油封必須能夠承受變速運轉、齒輪箱內部壓力、各種溫度要求以及其他一系列工況。
Oil seals are used to seal rotating shafts and to both protect the gear unit against dirt from outside and to protect the production environment from leaking lubricant. The oil seals must be able to withstand variable speeds, the pressure inside the gear unit, various temperature requirements and a range of other conditions.
SEW配件常用型號：
SEW 01986341/10.0
SEW 01995901-30M
SEW 01995901-50
SEW 13324535
SEW 13324551
SEW 13324586
SEW 13327429
SEW 13327437
SEW 13354345
SEW 13354353
SEW 13354361
SEW 13354388
SEW 13354396
SEW 13421603
SEW BE05A
SEW BE05B
SEW BE11A
SEW BE11B
SEW BE1A
SEW BE1B
SEW BE1C
SEW BE2
SEW BE20
SEW BE30
SEW BE3032
SEW BE5A
SEW BE5B
SEW BG 1.2
SEW BG 1.4
SEW BG 1.5
SEW BG 2.4
SEW BG 3.0
SEW BGE 1.0
SEW BGE 1.4
SEW BGE 3
SEW BGE1.5
SEW BM30
SEW BM62
SEW BMG05
SEW BMG1
SEW BMG122
SEW BMG15
SEW BMG2
SEW BMG4
SEW BMG61
SEW BMG8
SEW BMG8(1841264)
SEW BS24
SEW BSG
SEW FBG11B
SEW DRN100/DR100
SEW iBMP 3.1
SEW DFP21B/UOH11B
SEW DEH21B
SEW DFP21B
SEW DEH11B
SEW UOH11B
SEW DFE24B
SEW W AS45X75X8-NBR
SEW W B1SF55x84x8/11,5-FKM
SEW W BASF50X65X10-NBR
SEW W BASF50X80X10-NBR
SEW W BASF55x90x10-FKM
SEW W BASF55X90X10-NBR
如果您需要完整的SEW的相關技術咨詢，請隨時致電愛澤工業，或者訪問網站,我們將盡全力解決您的問題。
If you have any question for SEW，please feel free to dial or browse our website.
